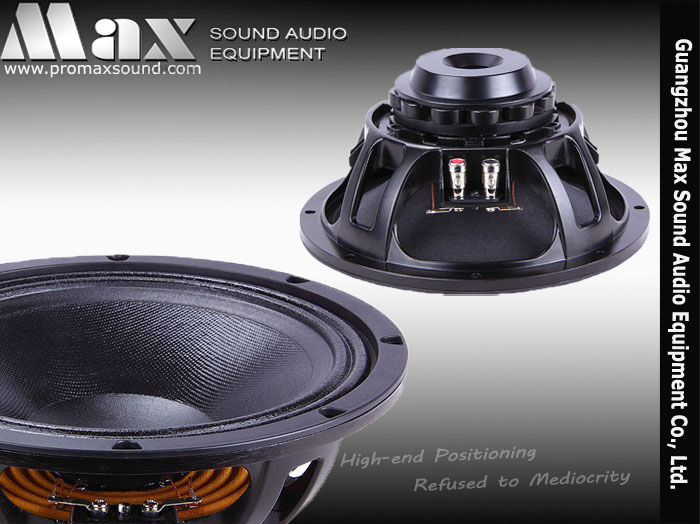

MAS8n420       Neo  WOOFER

·         2-inch, fiberglass outside aluminum voice coil

·         400W continuous program power handling

·         95 dB Sensitivity

·         65 Hz – 5500Hz  Frequency  range

·         Copper  demodulation ring

·         Forced air ventilation and 14mm top plate for minimum power compression

·         Single spider design with silicon based dampening control

·         Double-roll surround and corrugated straight cone geometry

·         Nominal Diameter: 210/8 mm/inch

·         Rated Impedance: 8 Ω

·         Program Power:400 W AES

·         Power handling capacity: 200W  RMS

·         Sensitivity: 95 dB

·         Frequency Range: 65 Hz -5500 Hz

·         Minimum Impedance: 6.3 Ω

·         Voice Coil Diameter: 51 / 2 mm/inch

·         Voice Coil Material: Aluminum

·         Voice Coil Winding Depth: 25/ 1 mm/inch

·         Number of layers: 1

·         Kind of layer:  outside

·         Cone Material: No pressed pulp

·         Cone Design:Straight

·         Surround Material: Polycotton

·         Surround Design:Double roll

·         Fs:  63 Hz

·         Re: 5 Ω

·         Qes : 0.2

·         Qms: 4.9

·         Qts: 0.3

·         Vas:  33.5 dm³

·         Sd: 326 dm3

·         Xmax:  5 mm

·         Mms: 35 g

·         BL: 14 N/A

·         Cms: 0.18 mm/N

·         Overall Diameter: 210 /8 mm/inch

·         Bolt Circle Diameter:  198 /7.8 mm/inch

·         Bolt Hole Diameter: 5/0.2 mm/inch

·         Front Mount Baffle Cut-out: 186 / 7.3  mm/inch

·         Depth: 160 / 6.3 mm/inch

·         Net Weight:2 kgs

·         Shipping weight: 4*2 kgs

·         Packing Size: 235*470*150 mm
