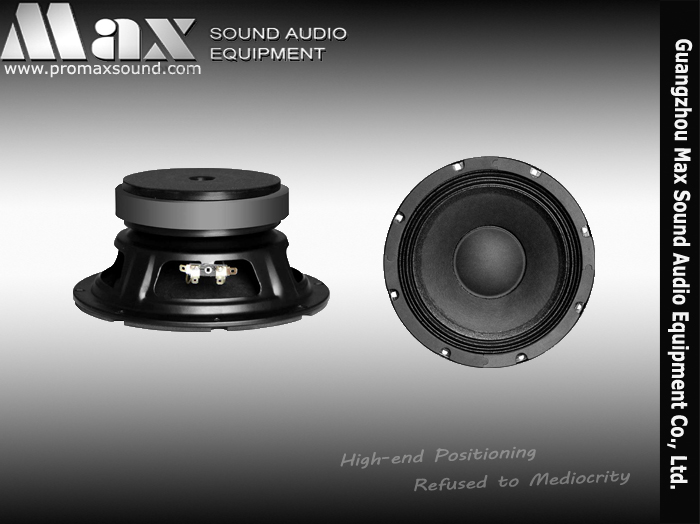

MAS08h02     WOOFER

·         2-inch, fiberglass outside copper voice coil

·         400W continuous program power handling

·         95 dB Sensitivity

·         100 Hz – 6000Hz  Frequency  range

·         Copper  demodulation ring

·         Forced air ventilation and 14mm top plate for minimum power compression

·         single spider design with silicon based dampening control

·         Double-roll surround and corrugated straight cone geometry

·         Nominal Diameter: 210/8 mm/inch

·         Rated Impedance: 8 Ω

·         Program Power:400 W AES

·         Power handling capacity: 200W  RMS

·         Sensitivity: 95 dB

·         Frequency Range:65 Hz -6000 Hz

·         Minimum Impedance: 6.0 Ω

·         Voice Coil Diameter: 51 / 2 mm/inch

·         Voice Coil Material:  Copper

·         Voice Coil Winding Depth: 25/ 1 mm/inch

·         Number of layers: 1

·         Kind of layer: outside

·         Cone Material: No pressed pulp

·         Cone Design:Straight

·         Surround Material: Polycotton

·         Surround Design:Double roll

·         Fs:  63 Hz

·         Re: 5 Ω

·         Qes : 0.2

·         Qms: 4.9

·         Qts: 0.3

·         Vas: 33.5 dm³

·         Sd: 326 dm3

·         Xmax: 5 mm

·         Mms: 35 g

·         BL: 14 N/A

·         Cms: 0.18 mm/N

·         Overall Diameter: 210/18 mm/inch

·         Bolt Circle Diameter: 198 /17 mm/inch

·         Bolt Hole Diameter: 5/0.2 mm/inch

·         Front Mount Baffle Cut-out: 180 /7  mm/inch

·         Depth:101/4 mm/inch

·         Net Weight: 3.1 kgs

·         Shipping weight: 6*3.1 kgs

·         Packing Size: 210*430*220 mm
